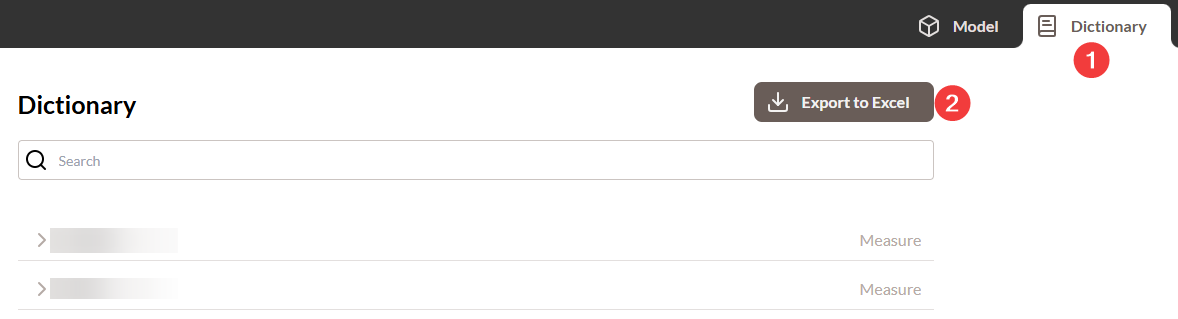

You can export the project dictionary in one Excel file.

It will contain the most relevant properties of attributes and measures of the project.

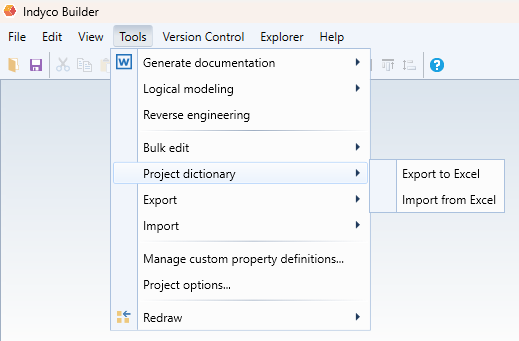

Go to Tools > Project dictionary > Export to Excel.




The exported Excel sheet lets you browse and edit attribute and measure details.



All changes can be imported back into the project (Tools > Project dictionary > Import from Excel)


For measures, the following columns are considered when importing the file back to the project:

  • Name
  • Description
  • Note
  • SourceTable
  • SourceField
  • Formula
  • Logical Name
  • SQL Type
  • Length
  • Precision
  • Scale
  • Custom properties


For attributes, the following columns are considered when importing the file back to the project:

  • Name
  • Description
  • Note
  • SampleValues
  • SourceTable
  • SourceField
  • Logical Name
  • SQL Type
  • Length
  • Precision
  • Scale
  • Custom properties


If you want to export and modify the conceptual model of the project you can check Exporting an existing model to Excel.
